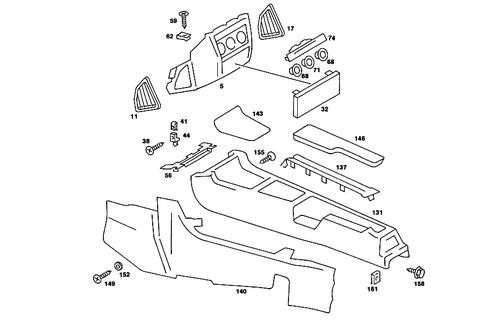

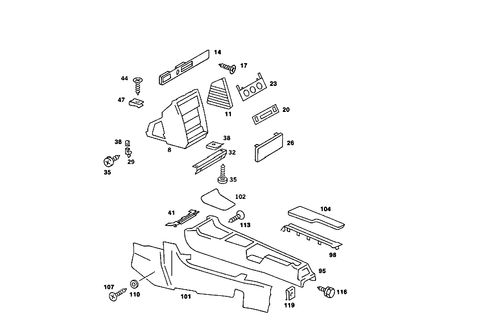

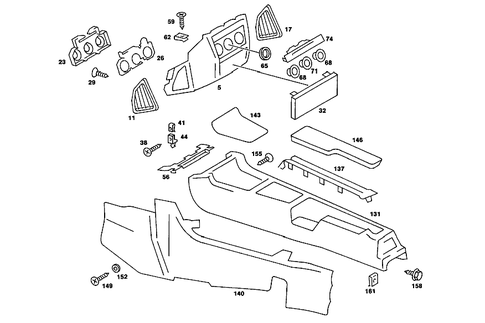

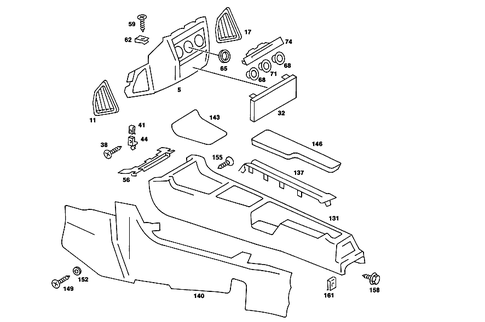

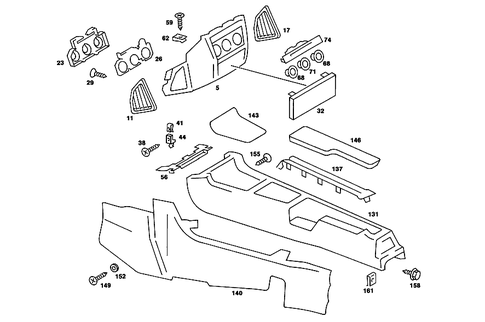

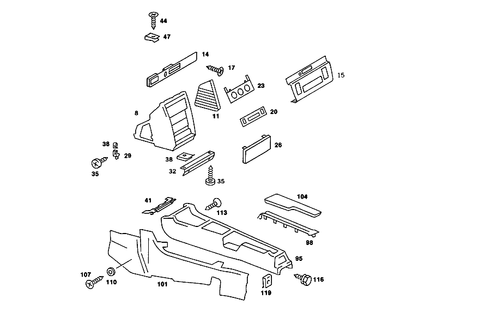

Housing Below Instrument Panel, and Housing with Tray for 1988 Mercedes-Benz 190 E
No.
Part # / Description / Price
Price
59
Tapping Screw
Mercedes-Benz
Mercedes-Benz Description: Air duct to instrument panel. Amg vehicles. Insulation to front panel. Housing with tray to instrument panel. Bottom pad to instrument panel. Insulation to fire wall,inside. On fire wall. Housing to tunnel,front left and right b 4.2x32. Instrument panel outside covering to fire wall.
MSRP $5.50
$4.16
MSRP $5.50
$4.16
62
Clip-Type Nut Mercedes-Benz
Mercedes-Benz Description: AT BOTTOM COVERINGDiameter: 4,2mmThread code letter: STOutside diameter: 19mmMaterial thickness: 0,5mm. Release mountDiameter: 4,2mmThread code letter: STOutside diameter: 19mmMaterial thickness: 0,5mm. FRESH AIR;INSTRUMENT PANEL,CENTERDiameter: 4,2mmThrea ...
MSRP $4.20
$3.25
MSRP $4.20
$3.25
74
Cover Mercedes-Benz
Mercedes-Benz Description: Between instrument panel and tunnel panelling. Top covering in housing. Air conditioning automatics. Used with air conditioner.
107
Insert Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Cigar lighter.
110
Cigarette Lighter Mercedes-Benz
Mercedes-Benz Description: GlÜhspirale up to chassis 002429. 12 v. Volt (glow spiral).
MSRP $43.50
$33.80
MSRP $43.50
$33.80
140
Lining Mercedes-Benz
Mercedes-Benz Description: Used with fabric and mb-tex trim tufting. Housing;bottom left tufting.
140
Lining Mercedes-Benz
Mercedes-Benz Description: Used with fabric and mb-tex trim tufting. Housing;bottom right tufting.
149
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: LINING TO TUNNEL,LEFT
Diameter: 4,2mm
Thread code letter: R. Housing to tunnel,front right b 4.2x25
diameter: 4,2mm
thread code letter: r. HOUSING TO INSTRUMENT PANEL
Diameter: 4,2mm
Thread code letter: R. MOUNTING TO BODY 4.2X25
Diameter: 4,2mm
Thread code letter: R. SHELL TO REAR PANELLING,TOP
Diameter: 4,2mm
Thread code letter: R.
Diameter: 4,2mm
Thread code letter: R. Housing to tunnel,front right b 4.2x25
diameter: 4,2mm
thread code letter: r. HOUSING TO INSTRUMENT PANEL
Diameter: 4,2mm
Thread code letter: R. MOUNTING TO BODY 4.2X25
Diameter: 4,2mm
Thread code letter: R. SHELL TO REAR PANELLING,TOP
Diameter: 4,2mm
Thread code letter: R.
155
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Lining to tunnel,right. Housing to tunnel,front left and right b 3.9x38. Lining to housing 3.9x38.
158
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Light unit on reinforcement,front, bottom 4.8x19 mm. 4.8x19. Lighting unit to front fender. 4.8x19.
161
Clip Nut, Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Panelling to right front panel pillar. Radiator grille shell to engine hood. Left,right,and central covering to cross member. Grip handle to rear side part. Mounting, cover. Lighting unit to front fender. Pocket to door.
MSRP $2.00
$1.56
MSRP $2.00
$1.56
173
Nut Mercedes-Benz
Mercedes-Benz Description: Insulation to fire wall,inside. Garnish moulding to covering. Mounting plate to fire wall. Footrest to fire wall. Ledge to covering. Covering below instrument panel,left. Covering to fire wall insulation. Panelling to front panel pillar. At bracket. Center panelling at door trim panel.
MSRP $1.00
$0.78
MSRP $1.00
$0.78
No.
Part # / Description / Price
Price
N/A
5
Paneling Mercedes-Benz
Mercedes-Benz Notes: NOT FOR USE WITH AIR CONDITIONER
Description: Between instrument panel and housing with tray.
5
Trim Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH AIR CONDITIONER
Description: Between instrument panel and housing with tray.
5
Paneling Mercedes-Benz
Mercedes-Benz Notes: NOT FOR USE WITH AIR CONDITIONER
Description: Between instrument panel and housing with tray.
8
Paneling Mercedes-Benz
Mercedes-Benz Notes: NOT FOR USE WITH AIR CONDITIONER
Description: Between instrument panel and housing with tray code 330/331.
8
Paneling Mercedes-Benz
Mercedes-Benz Notes: NOT FOR USE WITH AIR CONDITIONER
Description: Between instrument panel and housing with tray code 330/331.
8
Housing Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR USE WITH AIR CONDITIONER
Description: Between instrument panel and housing with tray.
14
47
Attachment Angle Bracket Mercedes-Benz
Mercedes-Benz Description: Housing to tunnel covering. Special version code 330/331.
50
MSRP $1.40
$1.04
53
MSRP $4.20
$3.25
74
Cover Mercedes-Benz
Mercedes-Benz Description: Top covering in housing. Automatic heating. Between instrument panel and tunnel panelling.
77
Cover Mercedes-Benz
Mercedes-Benz Description: Wood version. Zebrano. Top covering in housing. Air conditioning automatics.
86
Ashtray Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Zebrano. Special version code 330/331.
116
Bulb Mercedes-Benz
Mercedes-Benz Description: Ashtray lighting j-12v 2w. 12v-2w. Slotted gate lighting j-12v 2w. 12v-2w. Special version code 330/331. 12v-2w.
MSRP $4.40
$2.86
MSRP $4.40
$2.86
122
MSRP $2.20
$1.69
125
134
Trim, Tunnel Mercedes-Benz
Mercedes-Benz Notes: ORDER ADDITIONALLY: 1X 201 682 09 01, 1X 201 682 10 01
Description: Special version code 330/331.
No.
Part # / Description / Price
Price
8
Trim Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'89
Description: Between instrument panel and housing with tray.
8
Trim Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'90
Description: Between instrument panel and housing with tray.
11
Cover Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'89
Description: In housing,right. For air conditioner only.
14
Cover Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'89
Description: Two-part zebrano. Top covering in housing;tempmatik zebrano.
20
Cover Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'89
Description: Tempmatik operating unit zebrano.
32
Attachment Angle Bracket Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'89
Description: Housing to tunnel covering.
44
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Air duct to instrument panel. Amg vehicles. Insulation to front panel. Housing with tray to instrument panel. Bottom pad to instrument panel. Insulation to fire wall,inside. On fire wall. Housing to tunnel,front left and right b 4.2x32. Instrument panel outside covering to fire wall.
MSRP $5.50
$4.16
MSRP $5.50
$4.16
No.
Part # / Description / Price
Price
N/A
Radio Accessories Mercedes-Benz
Mercedes-Benz Notes: ACCESSORY
Description: Cassette zebrano,final-version (b6 7 81 00 02).
No.
Part # / Description / Price
Price
14
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Top covering in housing;tempmatik zebrano.
No.
Part # / Description / Price
Price
