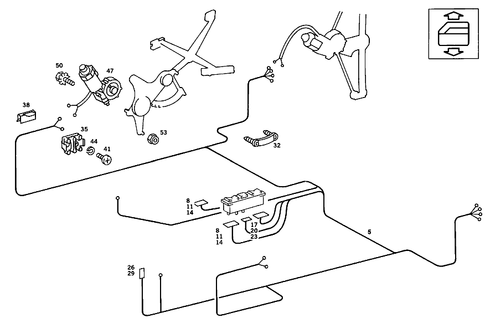

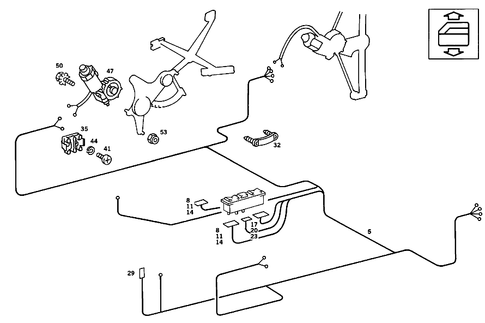

Electric Window Regulator for 1989 Mercedes-Benz 190E
No.
Part # / Description / Price
Price
N/A
Contact Socket
Mercedes-Benz
Mercedes-Benz Description: 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
MSRP $2.90
$2.21
MSRP $2.90
$2.21
N/A
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NOT FOR SWEDEN
Description: Range of delivery for subsequent installation. Double.
N/A
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
MSRP $3.40
$2.60
MSRP $3.40
$2.60
5
Line Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO.
A 522463
F 655543
Description: Electric window regulator,fourfold.
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 025645 F 002952
5
Line Mercedes-Benz
Mercedes-Benz Notes: FROM IDENT NO.
A 522464
F 655544
Description: Electric window regulator,fourfold.
5
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: WITH MANUAL FIVE-SPEED TRANSMISSION UP TO IDENT NO.
A 460220 F 454512
Description: Double electric window regulator.
5
Electric Cable Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
WITH MANUAL FIVE-SPEED TRANSMISSION UP TO IDENT NO. A 460220 F 454512
WITH MANUAL FIVE-SPEED TRANSMISSION UP TO IDENT NO. A 460220 F 454512
Description: Electric window regulator,fourfold.
5
Line Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO.
A 522463
F 655543
Description: Double electric window regulator.
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: WITH MANUAL FIVE-SPEED TRANSMISSION UP TO IDENT NO.
A 460220 F 454512
Description: Double electric window regulator.
5
Line Mercedes-Benz
Mercedes-Benz Notes: FROM IDENT NO.
A 522464
F 655544
Description: Double electric window regulator.
8
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Notes: FROM MODELYEAR '89
Description: Rear window roller blind. Tell-tale lamp edw. Backrest adjustment switch. Automatic anti-dazzle with garage dooropener. Fold-away outside rearview mirror switch. Roller blind switch.
8
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
MSRP $4.90
$3.77
MSRP $4.90
$3.77
11
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: To 000 821 26 26. Window regulator switch to 018 545 96 28.
14
MSRP $3.70
$2.89
14
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.08
MSRP $2.70
$2.08
23
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
MSRP $3.40
$2.60
MSRP $3.40
$2.60
26
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Fuse box "i". 2-pin. Central electrical system, bipolar i. 2-pin. Fuse box g. 2-pin.
32
Clamp Mercedes-Benz
Mercedes-Benz Description: Cable harness to rear door interior plate. Cable harness to cross member. Electric window regulator cable to rear door interior part. Main cable harness to front floor. Cable harness to side part. Electric cable to tailgate. Electric cable to rear door interior plate.
35
Line Connector Mercedes-Benz
Mercedes-Benz Description: Electric cable regulator cable. Stop-light/speed signal. Motor connection,left and right front doors. Bipolar. At bracket. To floor panel in legroom. Cable harness to front door. Electric cable to rear door interior plate. Terminal "58d".
38
44
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
MSRP $1.40
$1.04
MSRP $1.40
$1.04
47
Gear Motor 1 Mercedes-Benz
Mercedes-Benz Description: Front door,right fa.bosch to reiter&schefenacker(z=10). Electric window regulator,right fa bosch,to reitter & schefenacker.
MSRP $394.00
$283.20
MSRP $394.00
$283.20
47
Electric Motor 1 Mercedes-Benz
Mercedes-Benz Description: Electric window regulator,left fa.bosch,to brose coburg.
47
Gear Motor 1 Mercedes-Benz
Mercedes-Benz Description: Electric window regulator,left fa bosch,to reitter & schefenacker.
MSRP $474.00
$340.80
MSRP $474.00
$340.80
47
Electric Motor 1 Mercedes-Benz
Mercedes-Benz Description: Electric window regulator,right bosch, to brose coburg. Electric window regulator,right brose,to brose coburg.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
