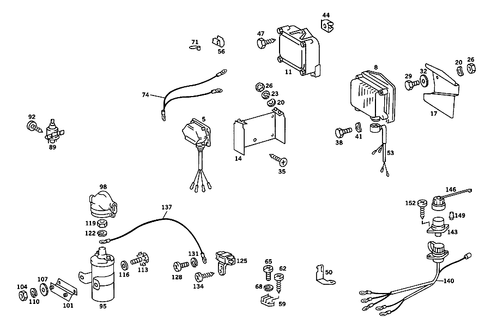

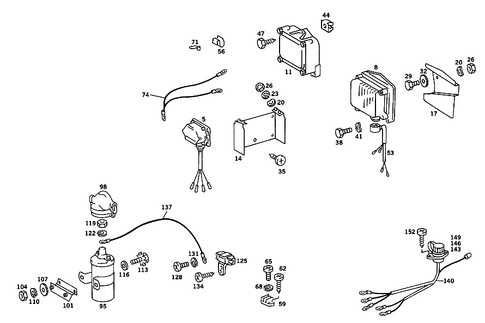

Ignition System and Diagnosis Box for 1984 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
8
Control Unit 1
Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Transistorized ignition.
17
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Transistorized ignition switchgear to wheelhouse panel.
26
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
MSRP $12.50
$9.62
MSRP $12.50
$9.62
29
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Ground cable to damper strut dome. Bracket.
MSRP $2.20
$1.69
MSRP $2.20
$1.69
32
Washer Mercedes-Benz
Mercedes-Benz Description: Wiper system mounting plate to partition panel center. Battery frame,front. Brake power regulator to bracket. Battery frame to fire wall. Cooling pipe to frame side member. Hydraulic unit to bracket. Strut to stiffening,front central. Temperature sensor to front bumper.
38
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M6x20. At air conditioner case or heater case.
Not For Sale
Not For Sale
44
Clamp Mercedes-Benz
Mercedes-Benz Description: Transistorized ignition switchgear to wheelhouse panel. Pre-glow time relay to cowl. Bearing to fire wall. Cover plate to fire wall.
47
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Transistorized ignition switchgear to wheelhouse panel. Pipe line to side member. Line to fire wall. Cover plate to fire wall.
113
Screw Mercedes-Benz
Mercedes-Benz Description: Ignition coil to left wheel arch panel. Hinge lever to engine hood. Transistorized ignition switchgear to wheelhouse panel. Ignition coil to wheelhouse panel. Ignition coil to battery frame. Electronic ignition system trigger box to wheelhouse panel. Bracket to wheel arch panel.
125
MSRP $65.00
$48.51
128
Screw Mercedes-Benz
Mercedes-Benz Description: Cd changer to bracket. Mounting at console. Control module mounting.
MSRP $1.20
$0.91
MSRP $1.20
$0.91
131
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
MSRP $1.40
$1.04
MSRP $1.40
$1.04
134
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Cable connector to left wheel arch panel. Series resistor to left wheel arch panel. Cable connector to right wheel arch panel. Cable harness to cable connector.
149
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.08
MSRP $2.70
$2.08
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
59
Cable Connector Mercedes-Benz
Mercedes-Benz Description: Bipolar. At left wheel arch panel. Double. Terminal td. Two-pole. On front door. Terminal "58d".
