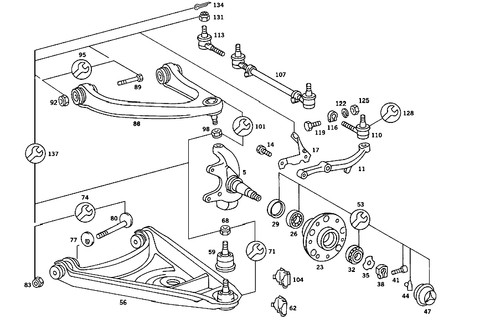

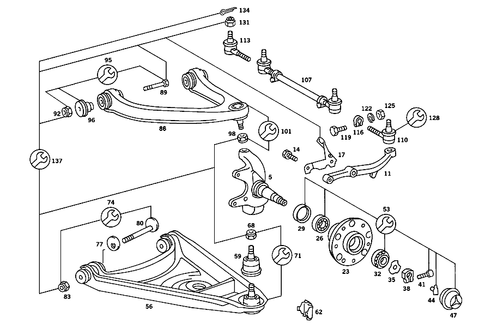

Steering Knuckle and Control Arm for 1984 Mercedes-Benz 380SL
No.
Part # / Description / Price
Price
26
Cone Bearing
Mercedes-Benz
Mercedes-Benz Description: Inside. Front wheel bearing. Wheel bearing to coupled transverse control arm aussen.
MSRP $30.00
$23.40
MSRP $30.00
$23.40
32
Tapered Roller Bearing Mercedes-Benz
Mercedes-Benz Description: Outside. Front wheel bearing. Wheel bearing to coupled transverse control arm innen.
MSRP $38.50
$29.90
MSRP $38.50
$29.90
35
MSRP $1.50
$1.17
38
Clamp Nut Mercedes-Benz
Mercedes-Benz Description: For steering knuckle for wheel hub an steering knuckle. (for left and right steering knuckles) wheel hubs to steering knuckles. For steering knuckle, left and right right-hand thread.
41
Screw Mercedes-Benz
Mercedes-Benz Description: Shifting finger to shifting shaft. For wheel hub an steering knuckle. Screw (for clamping nuts) wheel hubs to steering knuckles. Socket screw m 7.
MSRP $33.50
$26.00
MSRP $33.50
$26.00
44
Contact Spring Mercedes-Benz
Mercedes-Benz Description: Front wheel hub to steering knuckle to 140 330 00 51.
MSRP $5.50
$4.16
MSRP $5.50
$4.16
47
MSRP $17.00
$13.16
56
MSRP $1,490.00
$1,041.30
56
MSRP $1,450.00
$1,017.90
68
Nut Mercedes-Benz
Mercedes-Benz Description: Lower control arm to steering knuckle. Lower joint to control arm. Drag link and tie rod to steering arm.
MSRP $7.25
$5.59
MSRP $7.25
$5.59
74
Repair Kit, Control Arm Mercedes-Benz
Mercedes-Benz Description: Lower control arm to front subframe.
MSRP $210.00
$151.20
MSRP $210.00
$151.20
83
MSRP $11.50
$8.71
89
Screw Mercedes-Benz
Mercedes-Benz Description: Flexible disc to propeller shaft m 12 x 1,5 x 75. Upper control arm to front subframe.
MSRP $4.40
$3.38
MSRP $4.40
$3.38
92
95
Plain Bearing Mercedes-Benz
Mercedes-Benz Description: Upper transverse control arm. Upper control arm to front subframe.
MSRP $50.00
$39.00
MSRP $50.00
$39.00
98
Nut Mercedes-Benz
Mercedes-Benz Description: Drag link to pitman arm and to steering intermediate arm. Drag link and tie rod to steering arm. Torsion bar to frame. Upper transverse control arm to steering knuckle.
110
Ball Joint Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: R.h. Thread to 126 330 05 03.
110
Ball Joint Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: R.h. Thread to 126 330 06 03.
113
Ball Joint Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: L.h. Thread to 126 330 05 03.
113
Ball Joint Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: L.h. Thread to 126 330 06 03.
119
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Shackle mounting. M8X30
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
MSRP $2.40
$1.82
MSRP $2.40
$1.82
125
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
MSRP $3.00
$2.34
MSRP $3.00
$2.34
128
Repair Kit, Ball Joint Mercedes-Benz
Mercedes-Benz Description: Drag link. To 114 460 03 05. To 107 460 05 05,107 460 06 05. To 116 460 09 05,10 05,123 460 15 05. Boot.
131
Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 17mm. Upper transverse control arm to steering knuckle. Bumper to body. To 107 330 01 03. Drag link to pitman arm and to steering intermediate arm to a1264600805,a1264600905. To 107 460 06 05. Tie rod to steering arm. Shock absorber to frame. To 123 460 15 05. To 126 460 09 05.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 17mm. Upper transverse control arm to steering knuckle. Bumper to body. To 107 330 01 03. Drag link to pitman arm and to steering intermediate arm to a1264600805,a1264600905. To 107 460 06 05. Tie rod to steering arm. Shock absorber to frame. To 123 460 15 05. To 126 460 09 05.
MSRP $4.50
$3.51
MSRP $4.50
$3.51
131
Nut Mercedes-Benz
Mercedes-Benz Description: To 107 460 02 05/05 05. Drag link and tie rod to pitman arm. Up to chassis 8500315. To 116 460 06 05/09 05. Up to chassis 8521179. Tie rod to steering knuckle to 115 330 07 03,08 03. Up to chassis 8502432. To 126 460 07 05. Up to chassis 8513600.
MSRP $17.00
$13.00
MSRP $17.00
$13.00
134
Cotter Pin Mercedes-Benz
Mercedes-Benz Description: Drag link to pitman arm and to steering intermediate arm. Tie rod to steering knuckle.
MSRP $1.70
$1.30
MSRP $1.70
$1.30
137
Lock Washer Mercedes-Benz
Mercedes-Benz Description: Front axle mounting parts,right. Calipers to retaining plates. Caliper to steering knuckle.
MSRP $8.00
$6.24
MSRP $8.00
$6.24
137
MSRP $17.50
$13.65
No.
Part # / Description / Price
Price
N/A
Plain Bearing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Lower control arm.
MSRP $30.00
$23.40
MSRP $30.00
$23.40
17
53
Cone Bearing Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR'85
Description: Inside. Front wheel bearing. Wheel bearing to coupled transverse control arm aussen.
MSRP $30.00
$23.40
MSRP $30.00
$23.40
68
Nut Mercedes-Benz
Mercedes-Benz Description: Lower control arm to steering knuckle. Lower joint to control arm. Drag link and tie rod to steering arm.
MSRP $7.25
$5.59
MSRP $7.25
$5.59
89
Screw Mercedes-Benz
Mercedes-Benz Description: Flexible disc to propeller shaft m 12 x 1,5 x 75. Upper control arm to front subframe.
MSRP $4.40
$3.38
MSRP $4.40
$3.38
96
Plain Bearing Mercedes-Benz
Mercedes-Benz Description: Upper transverse control arm. Upper control arm to front subframe.
MSRP $50.00
$39.00
MSRP $50.00
$39.00
